ZX-Badaloc Reloaded
Implementing the ZX-Badaloc Clone into an FPGA

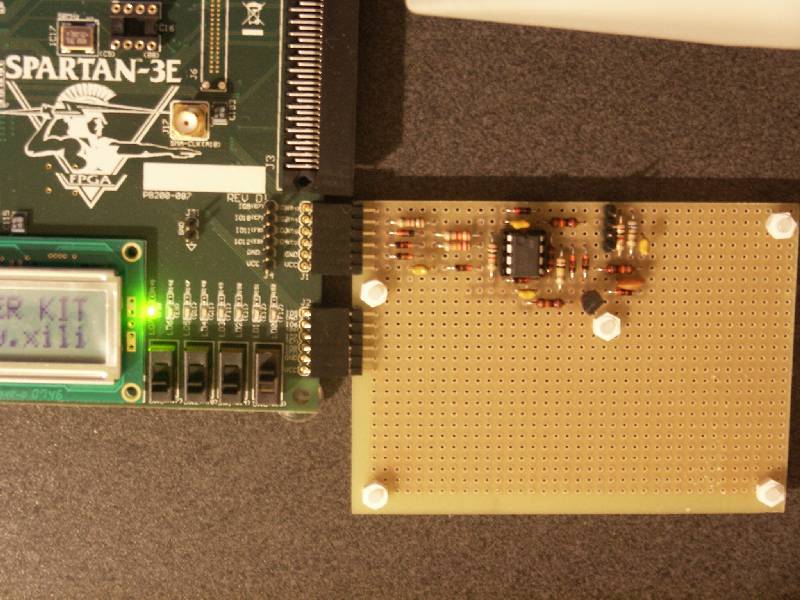

This is the Tape Interface page. The Schematic is the same developed for ZX-Badaloc. The board plugs into J1 & J2 6-pin connectors on the right side of the Xilinx Evaluation Board.
Only J1 is needed by the Tape interface: J2 is for SD-Card slots.

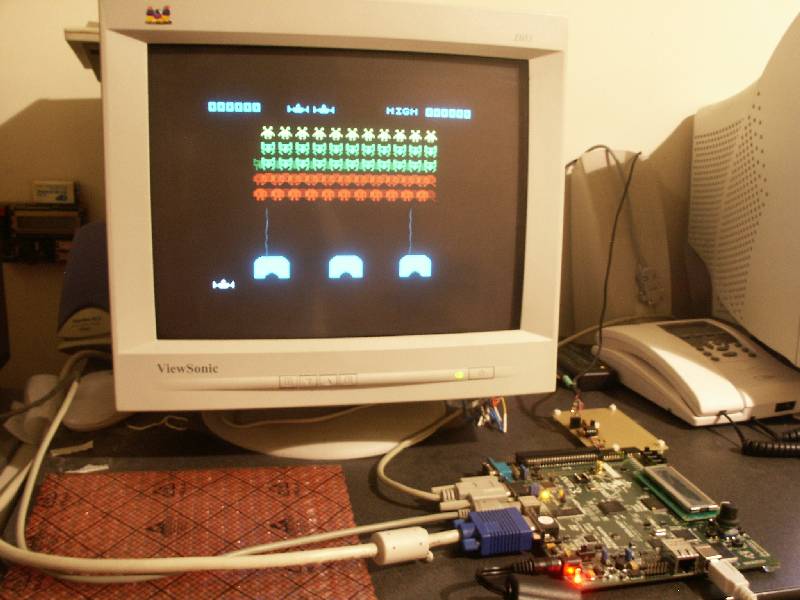

Here is a photo of the interface plugged, loading Raiders then running Raiders. Click on the picture to download the full size version.
